High-Precision SMT Cleaning Systems: Engineered Process Reliability and Long-Term Stability

The Cost of Poor Quality (CoPQ) in Modern SMT Manufacturing

In modern Surface Mount Technology (SMT) and Printed Circuit Board Assembly (PCBA) manufacturing, the relentless drive toward component miniaturization has eliminated any margin for process contamination. High-density interconnects and bottom-terminated components (BTCs)—such as Quad Flat No-leads (QFNs), Ball Grid Arrays (BGAs), and 01005 passives—leave minimal stand-off heights, often below two mils. Underneath these microscopic capillary gaps, active flux residues, unreflowed solder paste, and handling contaminants become securely trapped. The “Cost of Poor Quality” (CoPQ) stemming from inadequate defluxing is no longer just a cosmetic issue; it is a primary catalyst for catastrophic field failures.

If not completely removed, these ionic contaminants react with ambient humidity and applied bias voltage, leading directly to Electrochemical Migration (ECM), aggressive dendritic growth, and parasitic leakage currents that severely compromise the electrical functionality of the assembly. Furthermore, uncleaned non-ionic residues cause poor adhesion during subsequent conformal coating or potting processes, leading to irreversible delamination and moisture ingress. Investing in a robust, automated, closed-loop industrial cleaning system is a critical strategic decision to eliminate false calls in Automated Optical Inspection (AOI), prevent costly rework, protect your brand’s reputation, and maximize long-term production yields while meeting strict IPC-A-610 Class 2 and Class 3 reliability standards.

The “Three-Lens” Benefits: Engineered for the Entire Organization

For Process Engineers: Uncompromising Reliability & Strict IPC Compliance

Process and quality engineers require consistent, repeatable results that strictly adhere to IPC J-STD-001 manufacturing standards. Our automated cleaning platforms feature optimized fluid dynamics and sophisticated spray manifolds to ensure complete flux removal even under the tightest stand-off components. Traditional horizontal cleaning systems inherently suffer from the “shadowing effect,” where the physical bodies of taller components deflect the cleaning fluid, leaving flux residues completely untouched on adjacent smaller solder joints. The DCT InJet® series eliminates this completely by utilizing vertical Spray-in-Air technology. By securing boards vertically and utilizing perpendicularly directed high-pressure spray across rotating arms, the systems generate the exact kinetic energy required to flush contaminants from underneath complex geometries.

Hardware is equipped with precise real-time conductivity, temperature, and fluid concentration monitoring sensors. This guarantees that critical process parameters remain securely locked inside the acceptable operating window, ensuring unmatched process reliability batch after batch. Furthermore, our systems feature robust Manufacturing Execution System (MES) connectivity. Every single cycle parameter is continuously logged and exportable, granting process engineers total traceability and unshakeable confidence in their process validation.

For CFOs & Procurement: Superior ROI and Optimized Total Cost of Ownership (TCO)

Financial decision-makers and procurement managers evaluate capital equipment based on long-term profitability, operational expenditures (OPEX), and the bottom line. Evaluating a cleaning system strictly on its initial capital sticker price is a fundamental financial misstep. DCT cleaning systems are industry masterclasses in OPEX reduction and Total Cost of Ownership (TCO) optimization. Our machines are manufactured exclusively from premium AISI 304/316 stainless steel, guaranteeing decades of durable operation without the risk of micro-cracking, thermal degradation, or chemical leaching common in plastic machine alternatives.

Our integrated closed-loop filtration and advanced automated phase separation technologies continuously regenerate the active cleaning fluid during operation. By automatically filtering out microscopic particulates and phased-out flux, the systems prevent early bath saturation. This dramatically extends bath life, reducing annual chemical expenditures by up to 60% compared to conventional open-loop batch washers. Combined with significantly reduced hazardous waste disposal costs, lower Deionized (DI) water consumption through our barrier rinse architecture, and highly energy-efficient drying systems, a typical TCO calculation demonstrates a complete return on investment (ROI) within an impressive 12 to 18 months.

For EHS & Project Managers: Safe, Zero-Discharge, and Traceable Integration

Environmental, Health, and Safety (EHS) compliance is a strict, non-negotiable Key Performance Indicator (KPI) for any modern factory. DCT’s fully automated, closed-loop systems completely isolate operators from chemical exposure, direct contact, and hazardous vapor emissions. Engineered specifically for modern, low-VOC (Volatile Organic Compounds), non-flammable, water-based aqueous cleaning fluids, our machines satisfy the most stringent local and global ESG mandates.

Project managers driving facility modernization initiatives appreciate the effortless factory integration. Ergonomic handling trolleys minimize physical strain on operators. Intuitive PLC touchscreen interfaces with multi-level security access, real-time predictive maintenance alerts, and dedicated barcode scanners ensure that the new system integrates smoothly into existing production lines with zero disruption and minimal operator training required.

Selection Guide: Finding the Right System for Your Contamination Profile

Selecting the optimal cleaning system depends entirely on your primary contamination challenge, required throughput volume, and the physical geometry of your parts. DCT offers three core technologies designed to solve distinct industrial problems highly efficiently:

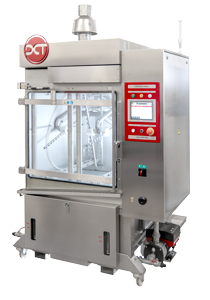

• InJet® Series (Vertical Spray-in-Air Technology): The absolute gold standard for precision PCBA defluxing, high-quality stencil cleaning, and dual-purpose misprint removal. Models like the versatile InJet® 388 CRD and the high-throughput dual-chamber InJet® 388 TWIN CRD are ideal for high-density electronic assemblies requiring dynamic fluid pressure. The InJet® 888 series handles heavy-duty solder frame maintenance, while the InJet® 3179 CRD tackles oversized stencils.

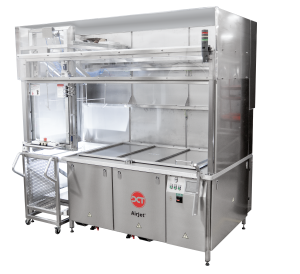

• AirJet® Series (Air-Bubble Technology): Engineered specifically for cleaning delicate reflow oven parts, condensation traps, and specialized mechanical solder frames. Air bubbles aggressively yet safely agitate the fluid, mechanically lifting baked-on flux residues without the sheer force of direct spray, thereby protecting delicate mechanical fixtures and preserving tight manufacturing tolerances.
• Sonix® Series (Ultrasonic Cavitation): The ultimate heavy-duty solution for conformal coating frames, wave soldering pallets, and heavily coated maintenance parts. Deep-penetrating broad-band ultrasonic cavitation safely removes hardened lacquers, cured SMT adhesives, and stubborn resins exactly where conventional spray technology cannot physically reach.

General Systems Specification Comparison

Industry FAQ: Expert Answers on SMT Cleaning Solutions

Tested and Validated Contaminants Database

We do not rely on guesswork or theoretical performance. Our cleaning systems and associated aqueous chemistries have been rigorously laboratory-tested on the most demanding industrial soils worldwide. Expand the table below to view a comprehensive list of specific lead-free solder pastes, no-clean liquid fluxes, UV-curable conformal coatings, and SMT epoxies that we have successfully removed to IPC standards using DCT technology.
